Peristaltic Pumps

250 Series

Compact Precision

The 250-PHO offers reliability and precision in a small package. The 250 pump head, with a 2 1/4" square housing, is capable of flow rates up to 450 mL per minute.

The 250-PHO is a good choice for use from the laboratory to industrial applications, and is available in fixed speed, air drive and variable DC configurations.

Flow Range: up to 450 mL/min
Typical Use: Lab / light industrial
Configurations: 3 available

800-531-5263

Why this series

Compact 2 1/4" square housing
Flow rates up to 450 mL/min
Fixed speed, air drive and variable DC configurations
Two interchangeable tubing sizes

Specifications

Technical detail & compatibility

Published values for the standard configuration. Custom assemblies are available upon request — our team will confirm the exact figures for your application.

At a glance

Flow Range: up to 450 mL/min
Max Speed: 300 RPM
Housing: 2 1/4" square, precision machined
Drive Options: Fixed speed, air drive, variable DC

Tubing Sizes

1/16" I.D. x 3/16" O.D.
1/8" I.D. x 1/4" O.D.

Browse compatible tubing

Industries

Paper & pulp
Laboratory
Sampling
Water treatment
Ink
Fluid transfer

Models & Assemblies

3 configurations in the 250 Series

Add any configuration to your quote request and our team will confirm pricing, tubing compatibility, and motor options for your application.

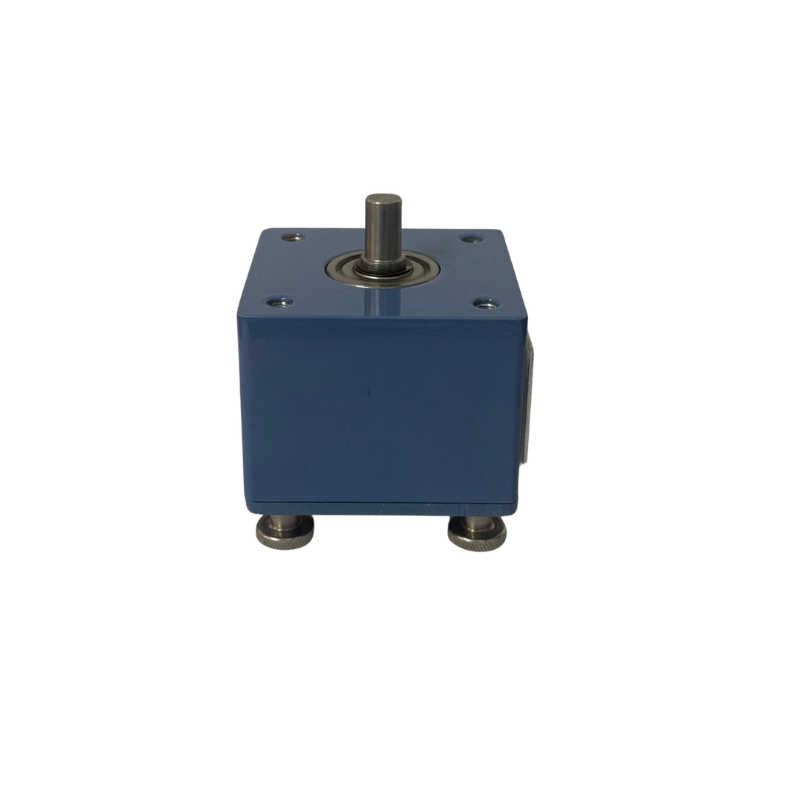

250-PHO

Pump Head Only

The 250-PHO offers reliability and precision in a small package. The 2 1/4" square housing is capable of flow rates up to 450 mL per minute, and is a good choice for use from the laboratory to industrial applications.

250-342

Vari-Flow™ DC Speed Control Pump

The 250 Vari-Flow features the 250 pump mounted to a steel base and coupled to a geared 300 RPM DC motor with a DC speed control. Each control is encased in a NEMA 4X enclosure and accepts either 115 or 230 VAC input power at 50 or 60 Hz.

250-342-1 — 300 RPM. Single direction rotation with manual speed control through a speed potentiometer. 1/16" I.D. tubing = 1.25 GPH, 1/8" I.D. tubing = 3.5 GPH.
250-342-2 — 300 RPM. Adds a Forward/Reverse selector switch alongside the manual speed potentiometer.
250-342-3 — 300 RPM. Adds a Local/Remote switch that allows for 4-20 mA or 0-10 VDC remote signal control.

250-400

Air Driven Pump

An assembly consisting of an air motor and pump mounted on a steel base. The air motor is intended for safe use in applications where there may be explosive vapors or powders present.
